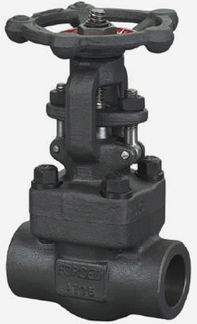

Gate Valve

Wedge Gate Forged and Cast Outside Screw & Yoke, Bolted, Welded
and Pressure Sealed Bonnet.
Manufactured in accordance with API 602, API 606, API 600, BS5352, BS1414
ISO 15761, ISO 10434, ASME B16.34, MSS SP 144.

Sizes: 1⁄2” - 2”
Ratings: 800# – 1500#
- Design to AP1602, IS015761, ASME B16.34 - Test to APl598, EN 12266-1,2 Marking MSS SP25 - Full port or Reduce Port - Outside Screw and Yoke (0S&Y) - The gland and gland flange self aligning design - Bolted bonnet/Welded bonnet/Pressure seal bonnet - Integral flange or welded flange, Integral backseat - SW ends to ASME B16.11, BW ends to ASME B16.25.

OPTIONAL FEATURE
- NACE MR 0175/NACE MR 0103, HIC/SSCC - Extend Body, Extend Stem/Bonnet - Jacketed - Cryogenic Design - With pup piece, locking device or with padlock, Position indicator, limit switch, Actuator etc. - Fugitive Emission - Free of Oil and Water

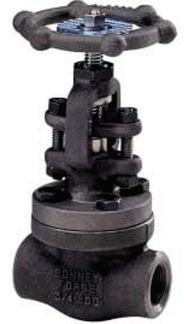

Globe Valve

Flg Version : 2" - 24" Forged and Cast Outside Screw & Yoke Bolted, Welded and
Pressure Sealed Bonnet.
Manufactured in accordance with API 602, API 600, API 603, BS5352, BS1873
ISO 15761, ASME B16.34, MSS SP 144.

Sizes: 1/2” - 12”
Ratings: 150# – 2500#
Connections: Socket and
Butt weld, NPT/ BSP, Flanged
ANSI RF/ RTJ.
Materials: A105N, F11,
LF2, 316/L, WCB, LCC and
CF8M.
With choices of trims from #8,
#5 and #16
Other materials, trims and
sizes available to special order.

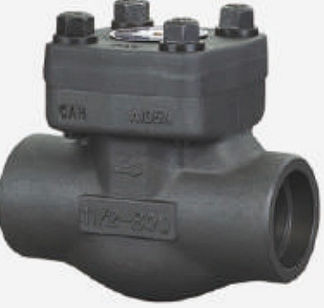

Check Valve

Flg Version : 2" - 36" Forged and Cast Swing, Piston and Ball type, Bolted, Welded and
Pressure Sealed Cover.
Manufactured in accordance with API 602, API 600, BS5352, BS1868, ISO 15761,
ASME B16.34, MSS SP 144.
Sizes: 1⁄2” - 16”
Ratings: 150# – 2500#
Connections: Socket and Butt weld, NPT/ BSP, Flanged ANSI RF/ RTJ.
Materials: A105N, LF2, 316/L, WCB, LCC and CF8M with choices of trims from #8,
#5 and #16.
Dual Plate Wafer, Wafer lugged
and Flanged, Retainer-less body
Manufactured in accordance
with API 594.
Sizes: 2” - 12”
Ratings: 150# – 2500#
Materials: WCB, LCC and CF8M
Other materials, trims and sizes
available to special order.

Reduced, Full Bore
Manufactured in accordance with
APl608, ISO 17292, APl6D, ASME B16.34
- Test to API598, API6D
- Marking MSS SP25
- Full port or Reduce Port
- Side entry, 2pcs or 3pcs
- Anti-Static design, Blow out proof stem, Fire Safe

Sizes: 1⁄2” - 16”
Ratings: 150# – 2500#
Connections: IS05211 mount flange
- Locking Device
- SW ends to ASME B16.11
-BW ends to ASME B16.25
- NPT ends to ASME B1.20.1
- Flanges (RF/RTJ) to ASME B16.5
Materials: A105N, LF2, 316/L, WCB, LCC and CF8M with choices of trims from #8,
#5 and #16.

Manufactured in accordance
with API 594.
Sizes: 2” - 12”
Ratings: 150# – 2500#
Materials: WCB, LCC and CF8M
Other materials, trims and sizes
available to special order.
Forged and Cast execution Swing, Piston and Ball type, Bolted, Welded and
Pressure Sealed Cover.
Manufactured in accordance with API 602, API 600, BS5352, BS1868, ISO 15761,
ASME B16.34, MSS SP 144.
Sizes: 1⁄2” - 16”
Ratings: 150# – 2500#
Connections: Socket and Butt weld, NPT/ BSP, Flanged ANSI RF/ RTJ.
Materials: A105N, LF2, 316/L, WCB, LCC and CF8M with choices of trims from #8,
#5 and #16.
Dual Plate Wafer, Wafer lugged
and Flanged, Retainer-less body
Manufactured in accordance
with API 594.
Sizes: 2” - 12”
Ratings: 150# – 2500#
Materials: WCB, LCC and CF8M
Other materials, trims and sizes
available to special order.

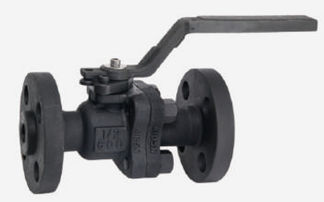

Ball Valve

Forged and Cast Reduced, Full Bore
Manufactured in accordance with
APl608, ISO 17292, APl6D, ASME B16.34
- Test to API598, API6D
- Marking MSS SP25
- Full port or Reduce Port
- Side entry, 2pcs or 3pcs
- Anti-Static design, Blow out proof stem, Fire Safe

Sizes: 1⁄2” - 16”
Ratings: 150# – 2500#
Connections: IS05211 mount flange
- Locking Device
- SW ends to ASME B16.11
-BW ends to ASME B16.25
- NPT ends to ASME B1.20.1
- Flanges (RF/RTJ) to ASME B16.5
Materials: A105N, LF2, 316/L, WCB, LCC and CF8M with choices of trims from #8,
#5 and #16.

Manufactured in accordance
with API 594.
Sizes: 2” - 12”
Ratings: 150# – 2500#
Materials: WCB, LCC and CF8M
Other materials, trims and sizes
available to special order.

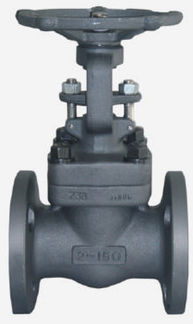

Flanged Wedge Gate Forged and Cast Outside Screw & Yoke, Bolted, Welded
and Pressure Sealed Bonnet.
Manufactured in accordance with API 602, API 606, API 600, BS5352, BS1414
ISO 15761, ISO 10434, ASME B16.34, MSS SP 144.

Sizes: 1⁄2” - 36”
Ratings: 150# – 2500#
Connections: Socket and Butt weld, NPT/ BSP, Flanged ANSI RF/ RTJ.
Materials: A105N, F11, F5, LF2, F51, 316/L, WCB, LCC and CF8M.
With choices of trims from #8, #5 and #16.
Other materials, trims and sizes available to special order.

Gate Valve

Forged and Cast Outside Screw & Yoke, Bolted, Welded
and Pressure Sealed Bonnet.
Manufactured in accordance with API 602, API 606, API 600, BS5352, BS1414
ISO 15761, ISO 10434, ASME B16.34, MSS SP 144.

Sizes: 1⁄2” - 36”
Ratings: 150# – 2500#
Connections: Socket and Butt weld, NPT/ BSP, Flanged ANSI RF/ RTJ.
Materials: A105N, F11, F5, LF2, F51, 316/L, WCB, LCC and CF8M.
With choices of trims from #8, #5 and #16.
Other materials, trims and sizes available to special order.

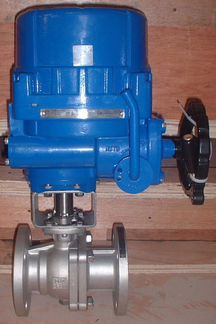

Electric Actuated Valve (Pneumatic Option Also)

Electric Actuated Stainless Steel Ball Valve
The ball valves are of 2 piece design and fitted with RPTFE seat.
They are Full Bore and have PN16 Flanged or ANSI ends, Others end are available on request.
Standard Actuator Specification :
Enclosure : Weatherproof IP67
Power Supply :
85/265v 50/60Hz, 24vAC/DC (50/60Hz)
Operating Time : 13 Seconds
Limit Switches : 4 x SPDT, 250V AC 10A
Anti Condensation Board : 2W
Manual Override : Handwheel
Rated Current (Amps)
24VAC/DC - 0.8A
110VAC - 0.1A 240VAC - 0.05A
Conduit Entries
:
Ambient Temperature :
2 x M20
:
External Surface
Hard anodised prior to Polyester paint finish
Body : 316 Stainless steel
Seat : RPTFE
Stem Seal : PTFE
Pressure Rating: Maximum 40 bar
Temperature : -25 Deg C to +200 Deg C
Ends : Flanged Connection-DIN 2501/BS4504

Everyvalve Ltd
19 Station Close, Potters Bar, Herts, EN6 1TL, UK
T: 01707-642018 F: 01707-646340 E: Sales@everyvalve.com

Petrochemical Class Valves
Manual Types Normally Good Stock Availability to 150mm
Sockets Weld / BSP / NPT / Flanged Ends

Valves Manufactured in accordance with
API 602, API 606, API 600, BS5352, BS1414 ISO 15761, ISO 10434, ASME B16.34, MSS SP 144.
