Comprehensive Guide to Valves: Gate, Ball, and Globe Valves
- Everyvalve Ltd
- Jul 30
- 3 min read
Updated: Sep 2

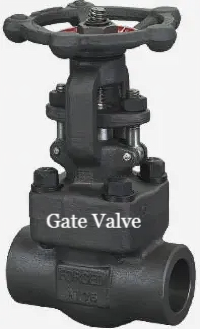

Understanding Gate Valves
Gate valves are essential components in various piping systems. They are designed to provide a tight seal and control the flow of fluids. Our gate valves are built to meet industry standards, including AP1602, IS015761, and ASME B16.34. They undergo rigorous testing according to API598 and EN 12266-1,2.
Specifications for Gate Valves
Sizes: 1/2” - 2”
Ratings: 800# – 1500#
Connections: Socket and Butt weld, NPT/BSP
Materials: A105N, F11, F5, LF2, F51, 316/L, WCB, LCC, and CF8M.
Trims Available: Trim8, Trim5, and Trim16.
We also offer other materials, trims, and sizes available to special order.
Larger Gate Valves
Our larger gate valves range from 2” to 36”. They feature forged and cast outside screw and yoke designs. These valves are manufactured in accordance with API 602, API 606, API 600, BS5352, BS1414, ISO 15761, ISO 10434, ASME B16.34, and MSS SP 144.
Specifications for Larger Gate Valves
Sizes: 2” - 36”
Ratings: 150# – 2500#
Connections: Flanged ANSI RF/RTJ.
Materials: A105N, F11, F5, LF2, F51, 316/L, WCB, LCC, and CF8M.
Trims Available: Trim8, Trim5, and Trim16.
Special orders for other materials, trims, and sizes are also available.
Ball Valves: Versatile and Reliable
Ball valves are known for their reliability and versatility. Our ball valves are designed to meet standards such as API608, ISO 17292, API6D, and ASME B16.34. They are tested according to API598 and API6D, ensuring top-notch performance.
Specifications for Ball Valves
Sizes: 1/2” - 2”
Ratings: 800# – 1500#
Connections: SW ends to ASME B16.11, BW ends to ASME B16.25, and NPT ends to ASME B1.20.1.
Additional Features
Anti-static design
Blow-out proof stem
Fire safe
Locking device
Extras Options:
NACE MR O175/NACE MR 0103, HIC/SSCC
Single body double ball forged ball valve (DBB)
Jacketed and cryogenic designs
Extended stem/bonnet options
Other materials, trims, and sizes are available upon request.
Large Ball Valves for Heavy-Duty Applications
Our large ball valves range from 1/2” to 34”. They are designed to meet the same rigorous standards as our smaller options. These valves are cast steel and include features such as anti-static designs and blow-out proof stems.
Specifications for Large Ball Valves
Sizes: 1/2” - 34”
Ratings: 150# - 1500#
Connections: Flanges (RF/RTJ) to ASME B16.5.
Additional Features
Fire safe
Locking device
Extras Options:
NACE MR O175/NACE MR 0103, HIC/SSCC
Single body double ball forged ball valve (DBB)
Jacketed and cryogenic designs
Extended stem/bonnet options
Other materials, trims, and sizes are available to special order.
Globe Valves: Precision Control
Globe valves are crucial for precise flow control in piping systems. Our globe valves are designed to meet standards such as API602, TS015761, and ASME B16.34. They undergo rigorous testing according to API598 and EN 12266-1,2.
Specifications for Globe Valves
Sizes: 1/2” - 2”
Materials: A105N, F11, LF2, 316/L, WCB, LCC, and CF8M.
Trims Available: Trim8, Trim5, and Trim16.
Ratings: 150# - 1500#
Connections: SW ends to ASME B16.11, BW ends to ASME B16.25, NPT ends to ASME B1.20.1, BSP to BS21.
Additional Features
Extend body and stem/bonnet options
Y-pattern and angle forged steel globe valve designs
Jacketed and cryogenic designs
Extras Options:
Locking device, position indicator, limit switch, actuator, etc.
Fugitive emission-free designs
Other materials, trims, and sizes are available to special order.
Large Globe Valves for Industrial Use
Our large globe valves range from 1/2” to 24”. They are designed to provide the same reliability and precision as our smaller models. These valves are cast steel and include features such as self-aligning gland and gland flange designs.
Specifications for Large Globe Valves
Sizes: 1/2” - 24”
Materials: A105N, F11, LF2, 316/L, WCB, LCC, and CF8M.
Trims Available: Trim8, Trim5, and Trim16.
Ratings: 150# - 1500#
Connections: Flanges (RF/RTJ) to ASME B16.5.
Additional Features
Extend body and stem/bonnet options
Y-pattern and angle forged steel globe valve designs
Jacketed and cryogenic designs
Extras Options:
Locking device, position indicator, limit switch, actuator, etc.
Fugitive emission-free designs
Other materials, trims, and sizes are available to special order.
